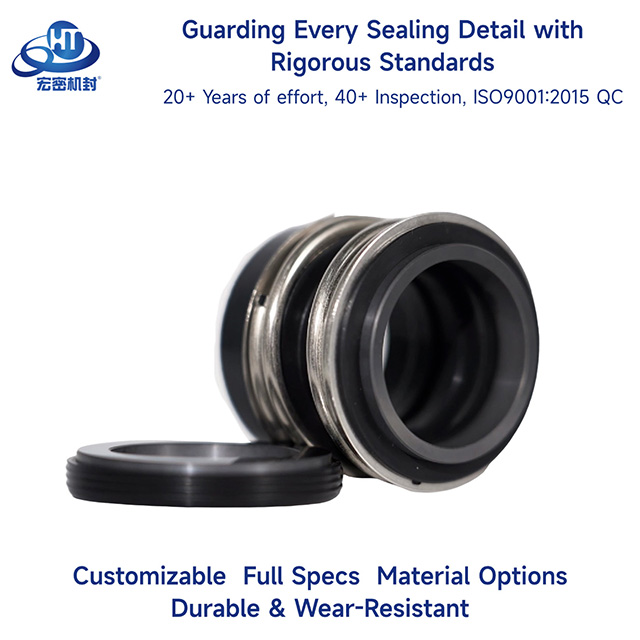

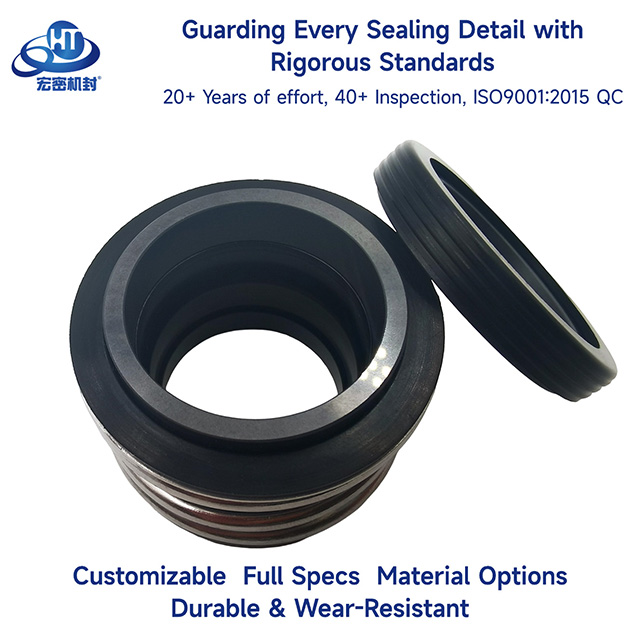

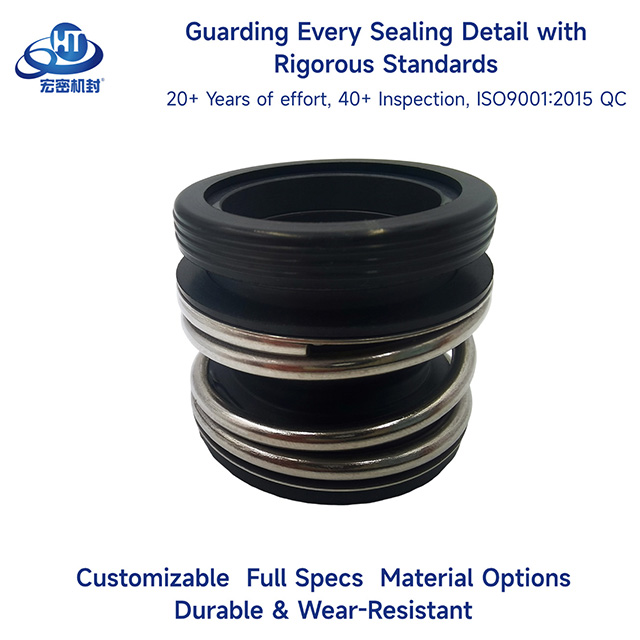

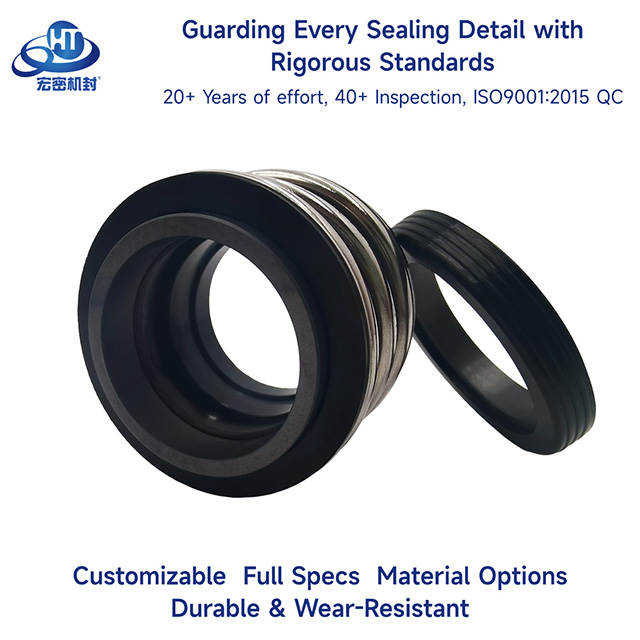

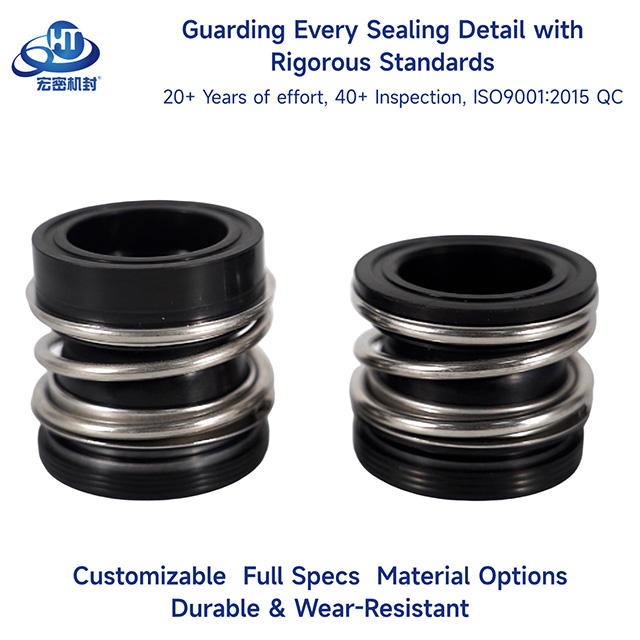

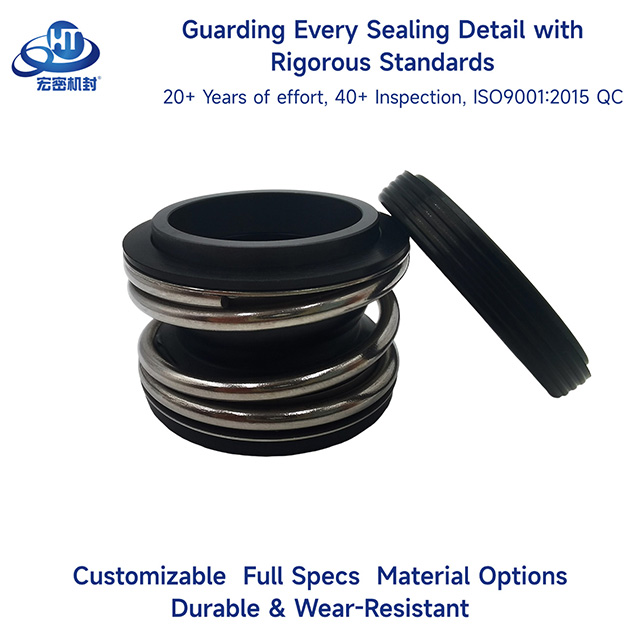

HM MG1(Type 109)
Basic Characteristics
Structure | Single End |
Pressure | Low Pressure |
Speed | Standard Speed |
Temperature | Normal Temperature |
Property | Wear and weak corrosion resistance |
Standards | DIN 24250, ISO 3069, GB 6556, EN 12756 |
Models | HM MG1(Type 109) |
Balance | Unbalanced Type |
Shaft Diameter Range | 10mm to 100 mm |
Product Detailed Description
HM MG1 (Type 109) mechanical seal is designed for water pumps, centrifugal pumps, submersible motors, vacuum pumps, pipeline pumps, and similar equipment.
Structural Features: Single seal, unbalanced type, bidirectional rotation, bellows structure, bellows-driven mechanical seal. This seal features a compact design, excellent compatibility, and easy installation. The bellows provide a counterforce against pressure to prevent collapse and wrinkling. The bellows and spring work together to apply compensating force to the sealing faces. The rubber bellows design prevents axial movement, thereby enhancing the floating capability of the rotating ring.
Application Fields:Primarily used in water pumps, submersible motors, pipeline pumps, sewage pumps, vacuum feed equipment, and other rotating machinery. Widely applied in wastewater treatment, municipal water supply, chemical, pharmaceutical, food processing, papermaking, and various other industries.
Operating Parameters
Working Pressure | ≤ 1.2 MPa |
Working Temperature | -20°C to 120°C |
Linear Speed | ≤ 10 m/s |
Material Pairing
Rotary Seal Face | Graphite / Silicon Carbide / Tungsten Carbide |
Stationary Seal Face | Alumina Ceramic / Silicon Carbide / Tungsten Carbide |
Auxiliary Seal | NBR / EPDM / FKM |
Spring | SS304/SS316 |
Metal Parts | SS304/SS316 |
Media | Oils, water, sewage, food and beverages, pulp, and other weakly corrosive media. |
Customization Available | Contact us to provide your customization requirements |
Product Drawings

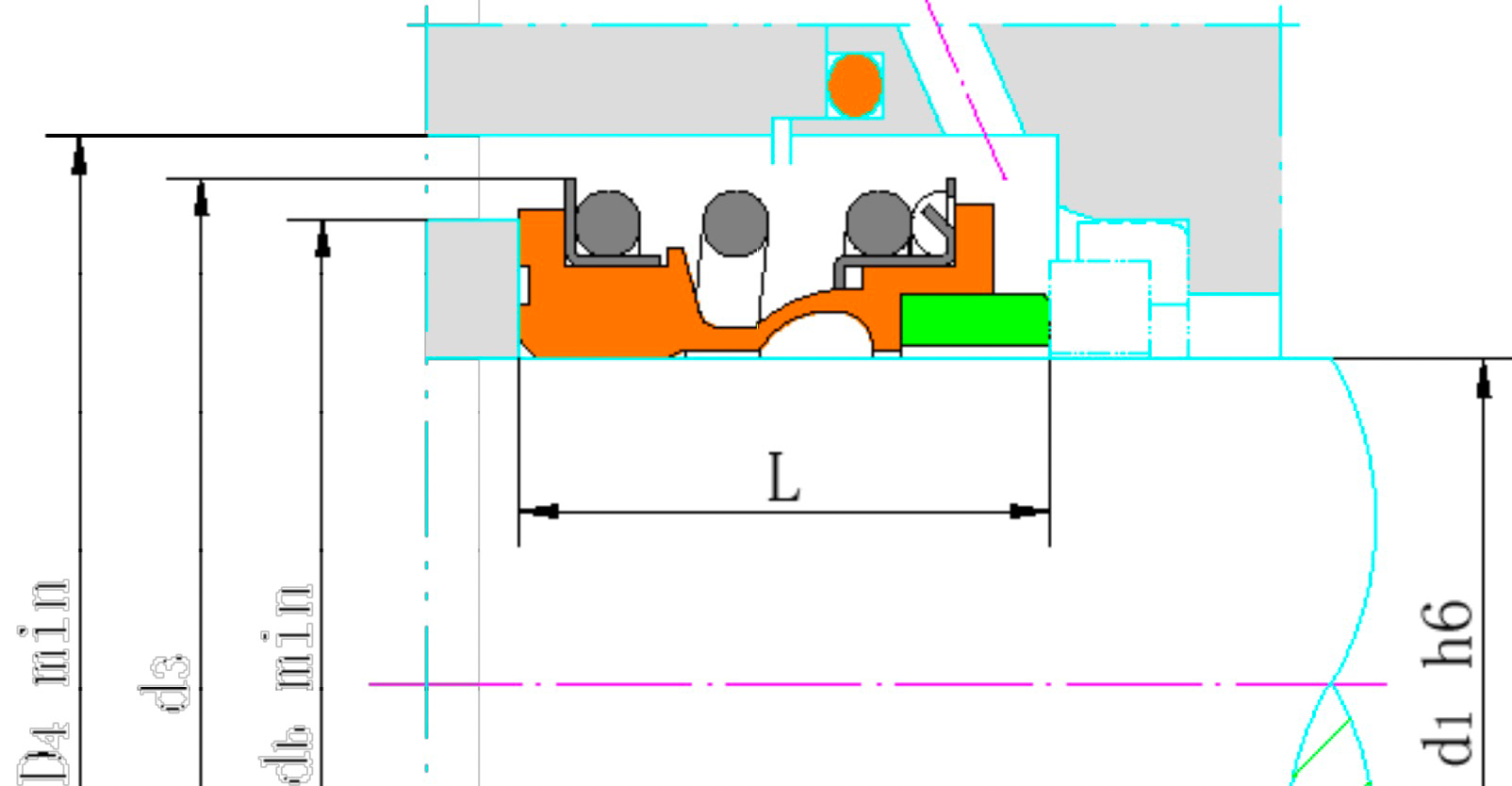

HM MG1 Drawing
