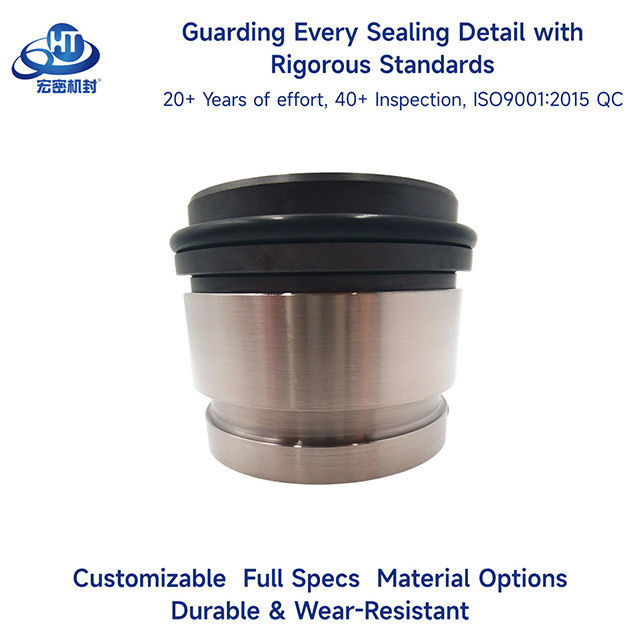

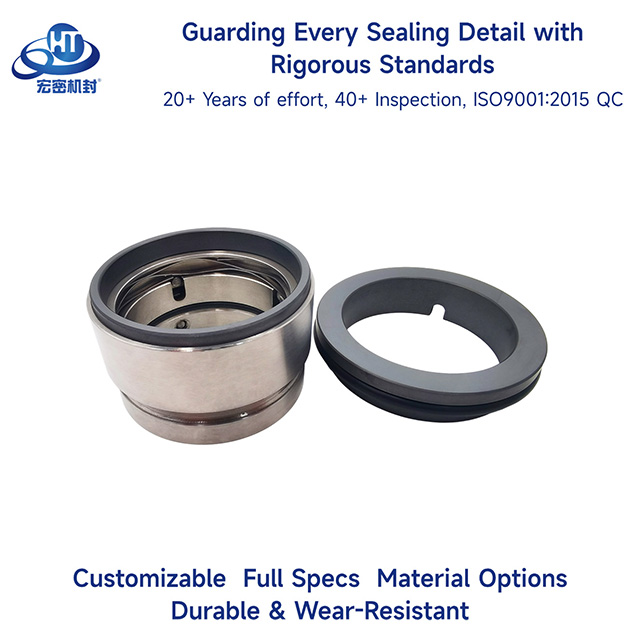

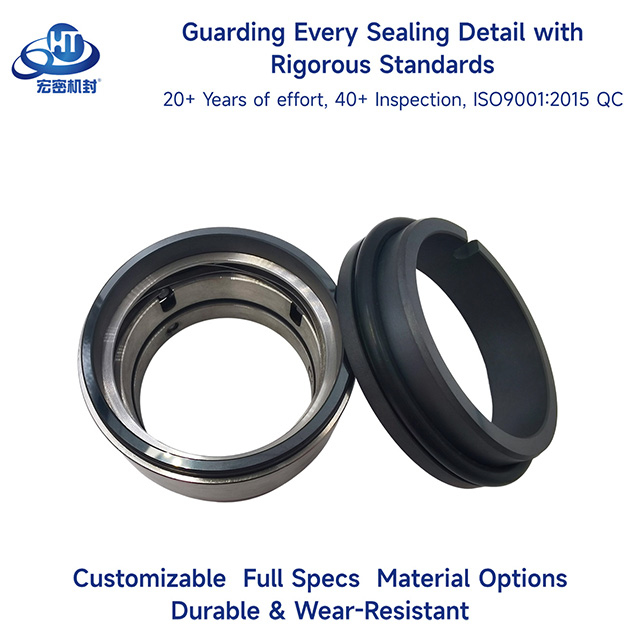

HM HJ92N
Basic Characteristics
Structure | Single End |
Pressure | Low Pressure |
Speed | Standard Speed |
Temperature | Ambient Temperature |
Models | HM HJ92N |
Balance | balanced Type |
Shaft Diameter Range | 18mm to 100mm |
Product Detailed Description
The HM HJ92N mechanical seal adopts a single seal arrangement with an internally mounted design. It is a balanced type, driven by drive pins. The rotating ring seal utilizes an O-ring, which offers effective self-tightening and reliable performance. The wave spring structure allows for the selection of different materials, friction pair materials, and configurations depending on specific operational requirements.
Structural Features: Single seal arrangement; balanced type; no specific rotation direction required; spring isolated from the medium. Suitable for particulate media and high-viscosity media.
Application Fields:Suitable for particulate media and high-viscosity media.Process industries such as sugar production, paper manufacturing, wastewater treatment, etc.
Operating Parameters
Working Pressure | 0.8MPa to 2.5 MPa |
Working Temperature | -20°C to 180°C |
Linear Speed | ≤ 20 m/s |
Material Pairing
Rotary Seal Face | Carbon/SiC/TC |
Stationary Seal Face | Ceramic/SiC/TC |
Auxiliary Seal | NBR / EPDM / FKM/Aflas/FEP/Kalrez/Chemraz |
Spring | SS304/SS316 |
Metal Parts | SS304/SS316 |
Media | Oil, Water, Weak Acids, Weak Alkalis, and Other Weakly Corrosive Solvents. |
Customization Available | Contact us to provide your customization requirements |
Product Drawings

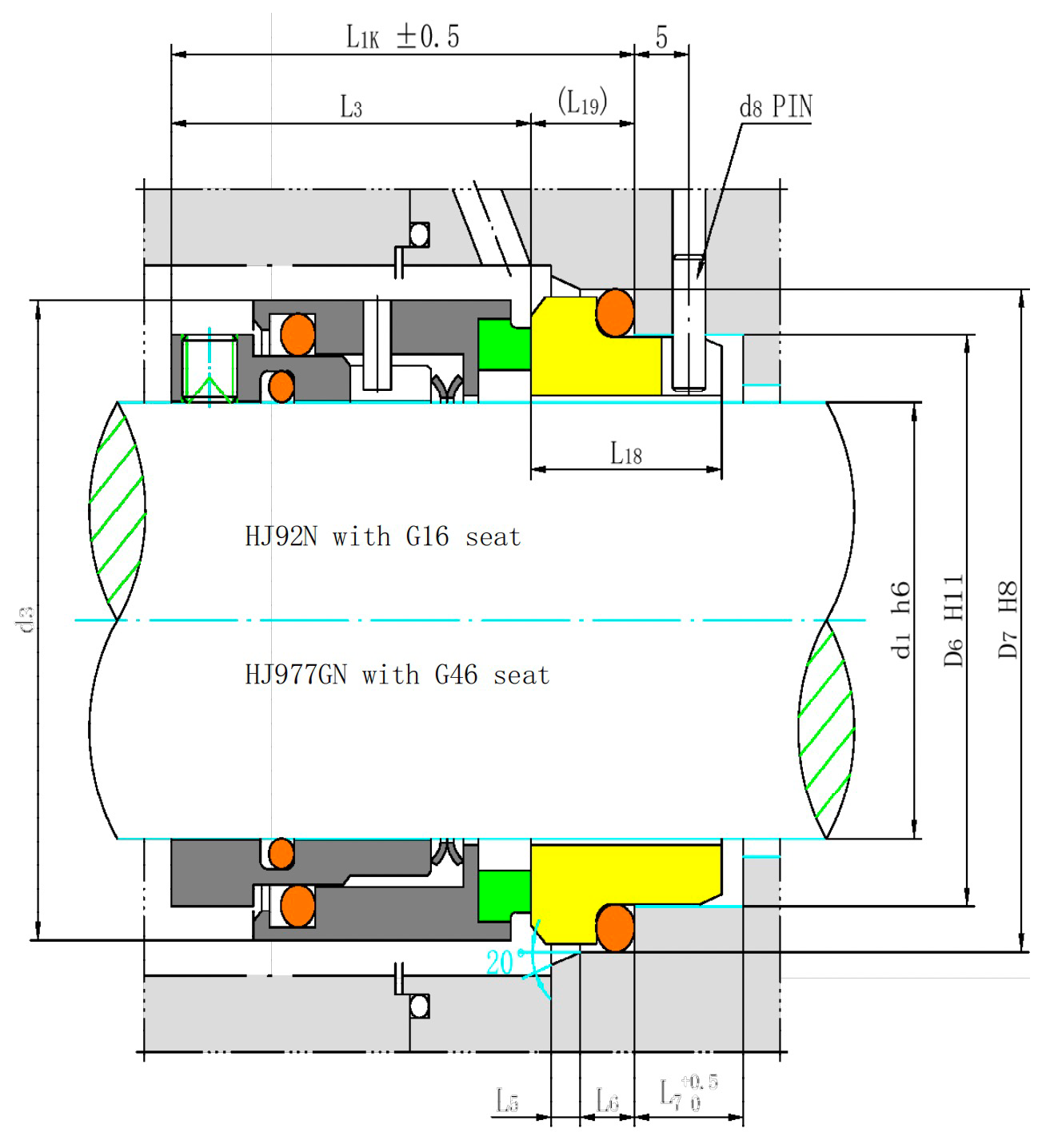

HM HJ92N Drawing
