HM 560D
Basic Characteristics
Structure | Double End |
Pressure | Low Pressure |
Speed | Standard Speed |
Temperature | Ambient Temperature |
Property | Resistant to Weak Corrosion |
Models | HM 560D |
Balance | Unbalanced Type |
Shaft Diameter Range | 12 mm to 50 mm |
Product Detailed Description

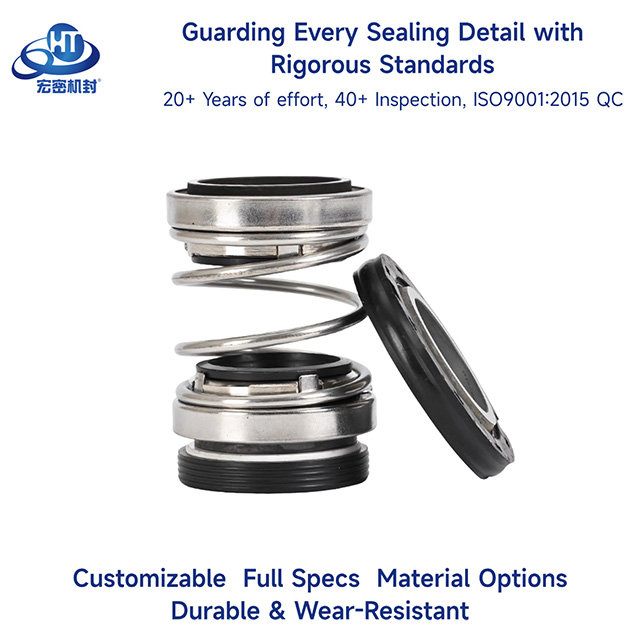

The HM 560D Type double rubber bellows mechanical seal is designed for equipment such as water pumps, pipeline pumps, submersible pumps, industrial pumps, circulation pumps, engine pumps, and food processing machinery.
Structural Features: Double end, unbalanced type, bi-rotational direction, rubber bellows, bellows-driven design. This mechanical seal features a compact structure, wide applicability, stable performance, and easy installation.
Application Fields:Widely used in water and wastewater treatment, food and beverage processing, pharmaceuticals, chemicals, oil refining, and paper industries. This mechanical seal is specifically designed for water pumps, pipeline pumps, submersible pumps, industrial pumps, circulation pumps, engine pumps, and food processing machinery. This product can serve as a replacement for EKK's 560 series mechanical seals.
Operating Parameters
Working Pressure | ≤ 1.0 MPa |
Working Temperature | -20°C to 150°C |
Linear Speed | ≤ 10 m/s |
Material Pairing
Rotary Seal Face | Graphite / Silicon Carbide / Tungsten Carbide |
Stationary Seal Face | Alumina Ceramic / Silicon Carbide / Tungsten Carbide |
Auxiliary Seal | NBR / EPDM / FKM |
Spring | SS304/SS316 |
Metal Parts | SS304/SS316 |
Media | Oil, Water, Inorganic Acids, Alkalis, and Other Organic Solvents |
Customization Available | Contact us to provide your customization requirements |
Product Drawings

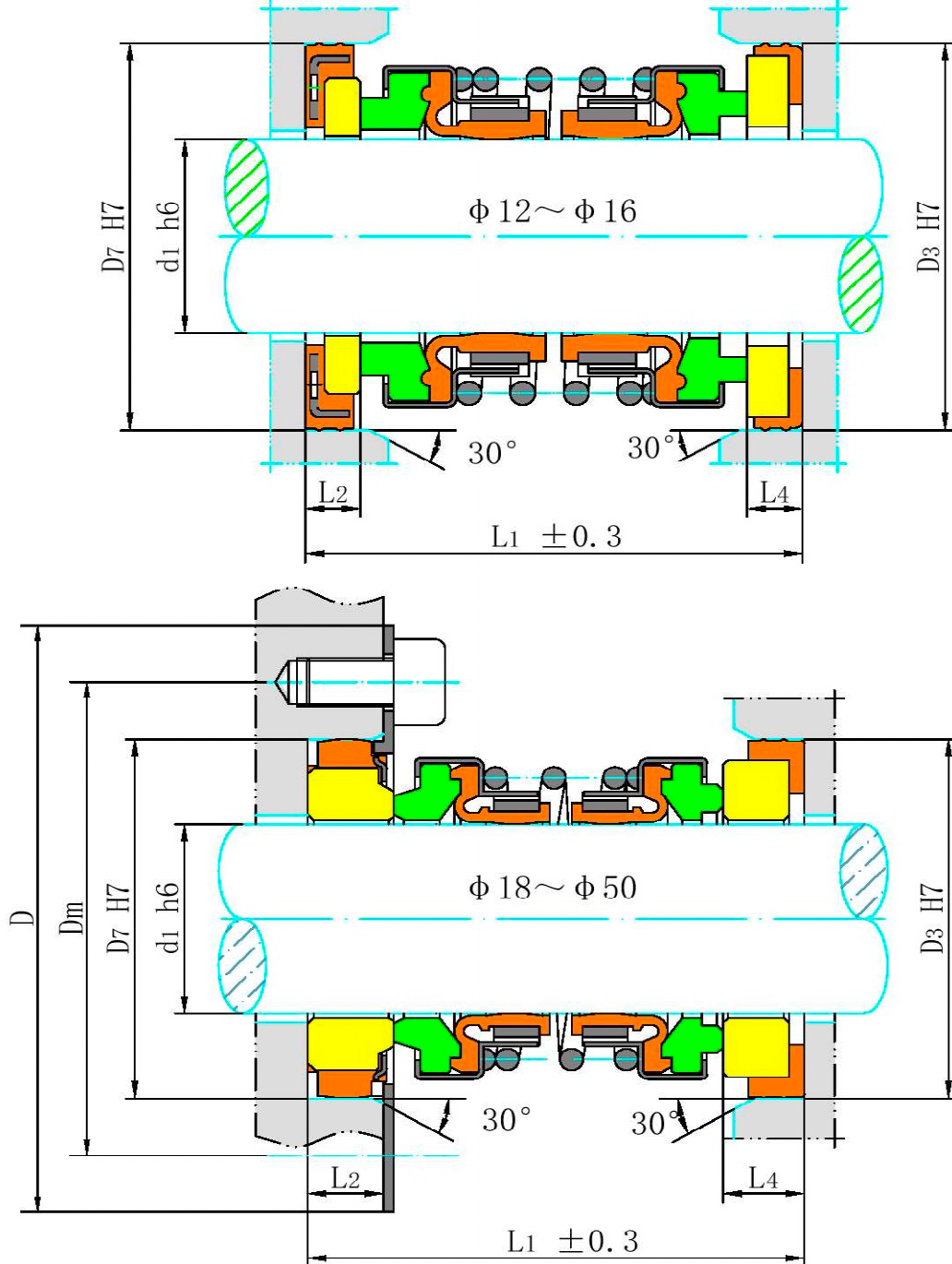

HM 560D Drawing
