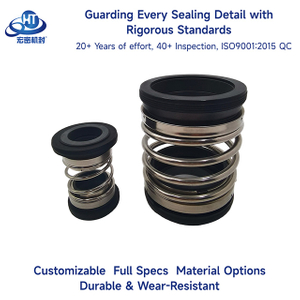

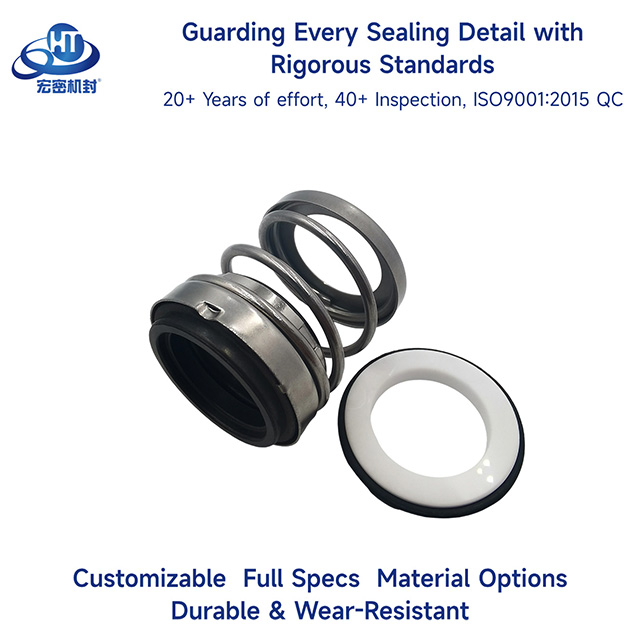

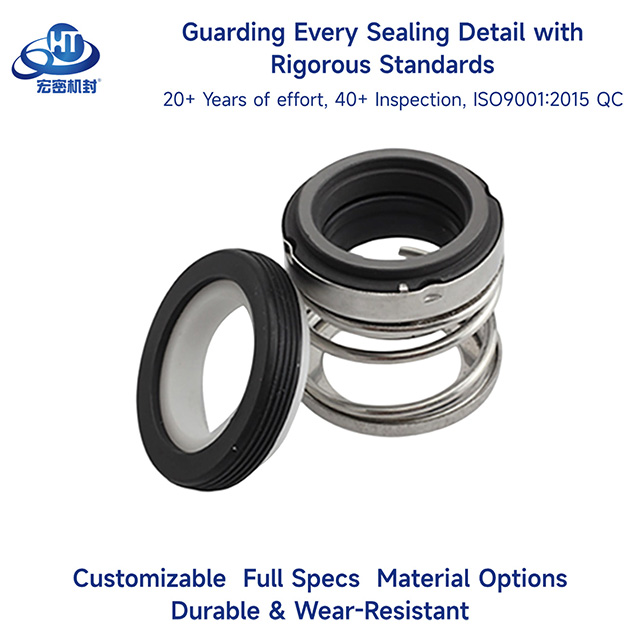

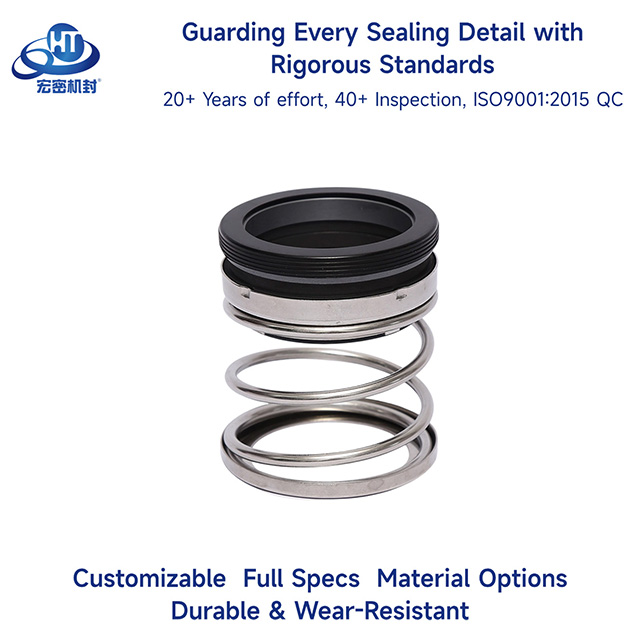

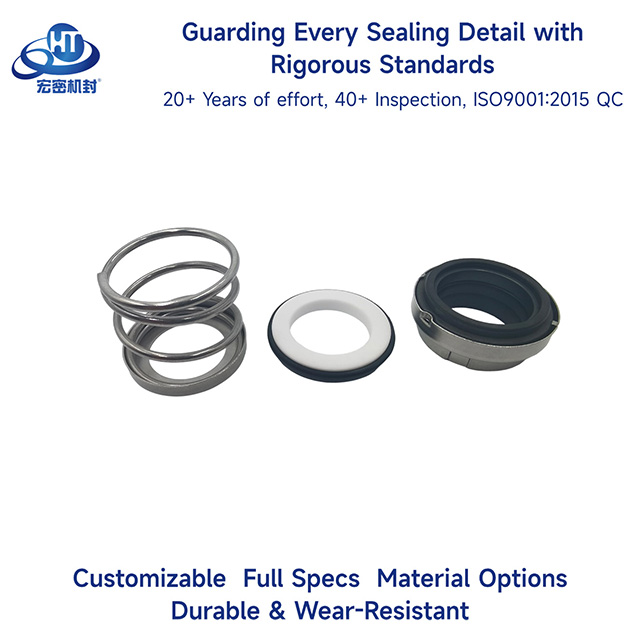

HM 560
Basic Characteristics
Structure | Single End |
Pressure | Low Pressure |
Speed | Standard Speed |
Temperature | Ambient Temperature |
Property | Resistant to Weak Corrosion |
Models | HM 560 |
Balance | Unbalanced Type |
Shaft Diameter Range | 8mm to 50mm |
Product Detailed Description
The HM 560 Type rubber bellows mechanical seal is designed for water pumps, pipeline pumps, submersible pumps, circulation pumps, engine pumps, and food processing machinery.
Structural Features: Single end, unbalanced type, bi-rotational direction, rubber bellows design, bellows-driven mechanical seal. This mechanical seal features a compact structure, wide applicability, high stability, and easy installation.
Application Fields:Widely used in water and wastewater treatment, food and beverage processing, pharmaceuticals, chemicals, oil refining, and paper industries. This mechanical seal is specifically designed for water pumps, pipeline pumps, submersible pumps, industrial pumps, circulation pumps, engine pumps, and food processing machinery.
Operating Parameters
Working Pressure | ≤ 0.8 MPa |
Working Temperature | -20°C to 150°C |
Linear Speed | ≤ 10 m/s |
Material Pairing
Rotary Seal Face | Graphite / Silicon Carbide / Tungsten Carbide |
Stationary Seal Face | Alumina Ceramic / Silicon Carbide / Tungsten Carbide |
Auxiliary Seal | NBR / EPDM / FKM |
Spring | SS304/SS316 |
Metal Parts | SS304/SS316 |
Media | Oil, Water, Weak Acids, Weak Alkalis, and Other Weakly Corrosive Solvents. |
Customization Available | Contact us to provide your customization requirements |
Product Drawings

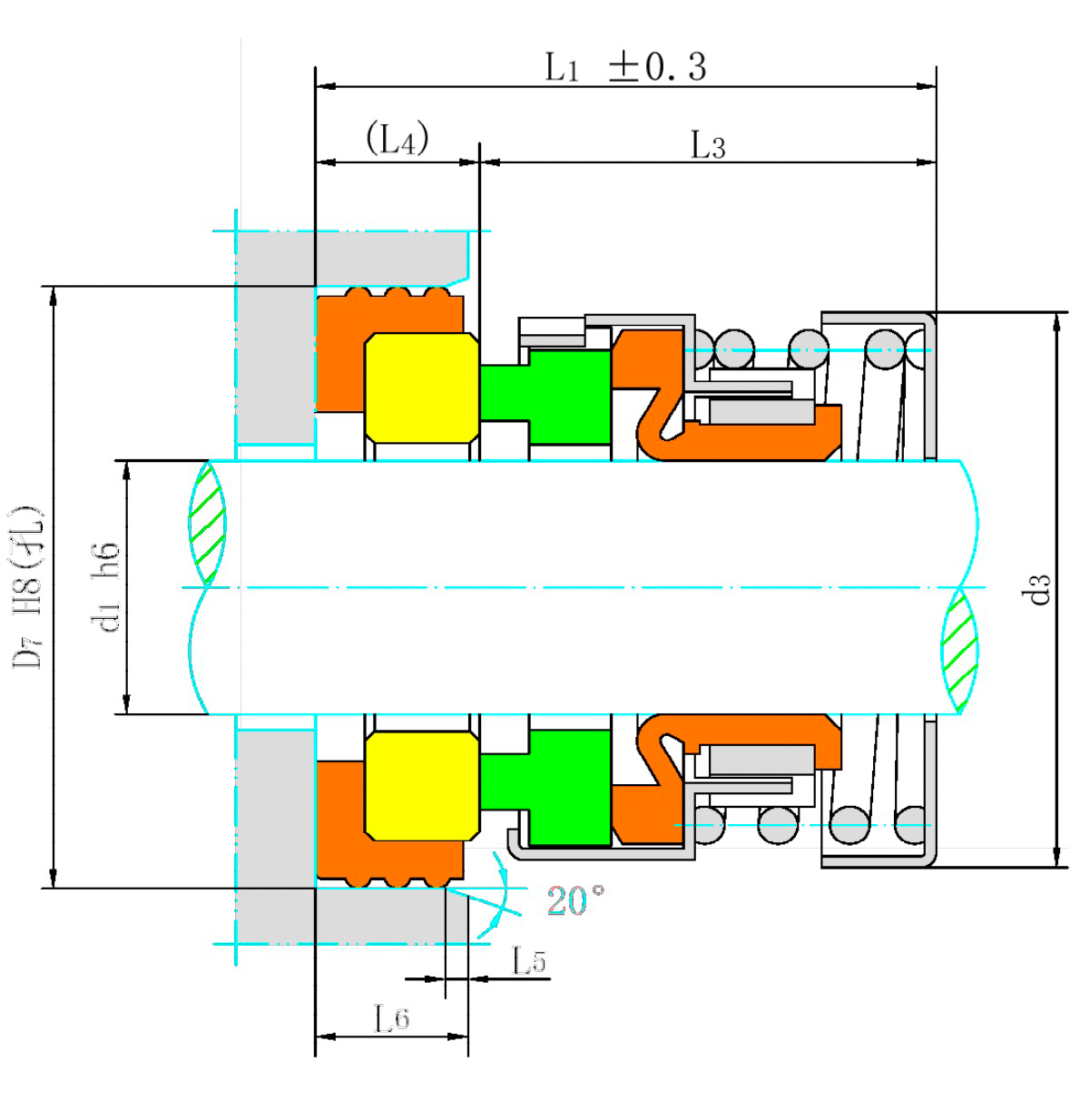

HM 560 Drawing
