HM 108U
Basic Characteristics
Structure | Single End |
Pressure | Atmospheric Pressure |
Speed | Standard Speed |
Temperature | Ambient Temperature |
Property | Wear-Resistant, Corrosion-Resistant |
Standards | ISO 3069, GB 6556, DIN 24960 |
Models | HM 108U |
Balance | Unbalanced Type |
Shaft Diameter Range | 35 mm to 100 mm |
Product Detailed Description
HM 108U Type single spring mechanical seal is used in water pumps, circulation pumps, and vacuum pumps.
Structural Features: Single end, single spring, unbalanced type, fixed rotation direction spring-driven mechanical seal. The spring-driven structure fixes the rotation direction of the seal. This mechanical seal has a simple structure, low cost, wide application, and reliable and stable performance.
Application Fields:Widely used in industries such as petrochemicals, oil refining, chemical processes, chemical fibers, water treatment, and chemical transportation.
Operating Parameters
Working Pressure | ≤ 0.8 MPa |
Working Temperature | -20°C to 150°C |
Linear Speed | Up to 15 m/s |
Material Pairing
Rotary Seal Face | SiC / TC |
Stationary Seal Face | Carbon / SiC / TC |
Auxiliary Seal | NBR / EPDM / FFKM / Aflas / PTFE |
Spring | SS304/SS316 |
Metal Parts | SS304/SS316 |
Media | Oil, Water, Inorganic Acids, Alkalis, and Other Organic Solvents |
Customization Available | Contact us to provide your customization requirements |

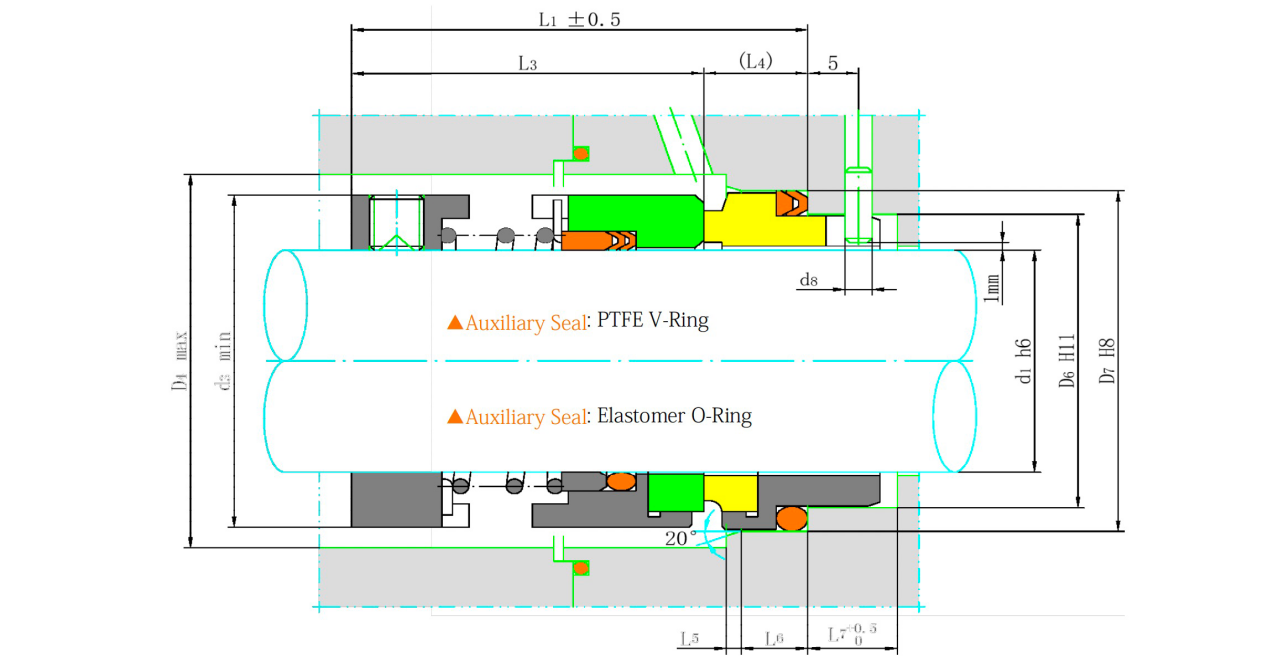

Product Drawings
HM 108U Drawing
