Views: 33 Author: Site Editor Publish Time: 2026-01-09 Origin: Site
In the field of modern industrial fluid transport and control, mechanical seals are critical functional components of rotating machinery. The choice of seal face materials directly impacts equipment operational stability, energy loss, and maintenance cycles. Historically, Tungsten Carbide (WC) has dominated the heavy-duty seal market due to its exceptional hardness, fracture toughness, and resistance to impact in high-pressure and abrasive conditions. However, entering the 2024-2025 period, the global tungsten supply chain has undergone profound structural adjustments. Influenced by export controls in major supplying nations, increased environmental inspections, and surging demand from high-tech sectors like aerospace and defense, the price of Ammonium Paratungstate (APT)—the core raw material for WC—has remained at historic highs.
For mechanical seal manufacturers, the non-rational surge in raw material costs is no longer just a simple compression of profit margins; it is a severe test of supply chain security and market competitiveness. Market data from the third quarter of 2025 shows that the price of Tungsten Carbide in China surged to 63.5/KG (USD), while spot prices in North American and European markets also saw significant premiums due to tightening supply. In this environment, identifying "alternative" materials that offer equivalent performance, stable supply, and better cost-effectiveness has become a core strategic task for global seal manufacturers. This report systematically explores replacement paths for Tungsten Carbide in the mechanical seal sector, covering Silicon Carbide ceramics, advanced Alumina ceramics, surface engineering coatings, and high-chromium cast alloys.

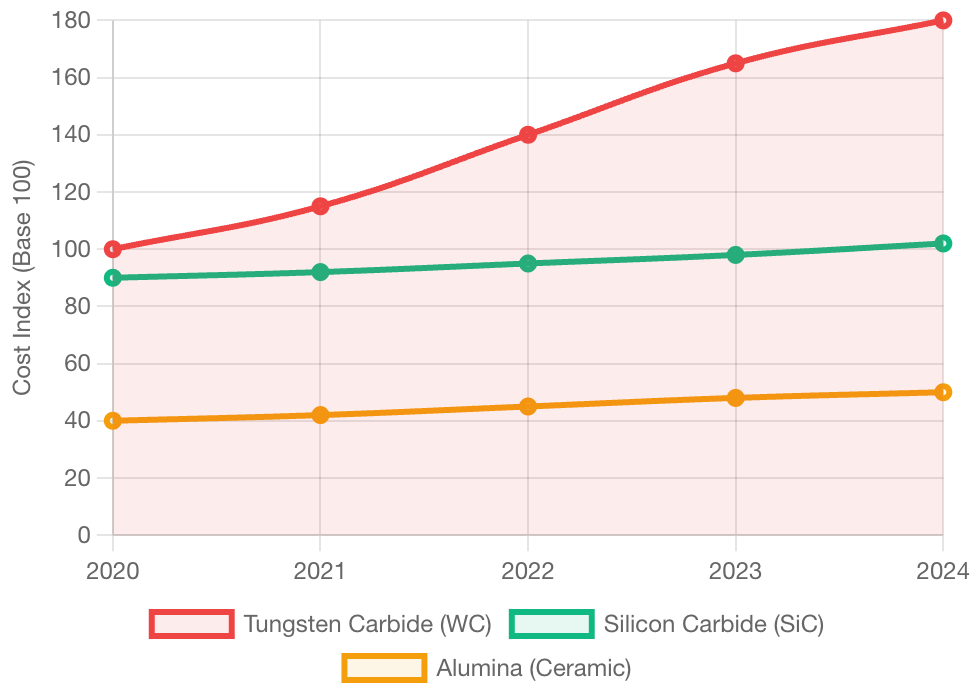

To formulate an effective material replacement strategy, one must first understand the underlying drivers of sustained high tungsten costs. Tungsten is widely regarded as a strategic metal, with global production highly concentrated—China accounts for over 80% of global output. In 2025, the global tungsten supply system exhibited strong seller-market characteristics due to stricter macro-controls on mining quotas and export limits in China, coupled with declining ore grades from resource depletion.
| Region | 2025 Q2 Price (USD/KG) | 2025 Q3 Price (USD/KG) | Quarterly Change (%) | Core Drivers |
| USA | 57.4 | 50.8 | -11.5% | Soft automotive demand and inventory digestion |
| China | 51.8 | 63.5 | +22.6% | Environmental audits and export restrictions |
| Germany | 56.1 | 50.4 | -10.2% | Delayed tool orders and economic uncertainty |
| Canada | 76.4 | 65.3 | -14.5% | High import dependency and supply chain disruptions |
| Austria | 51.2 | 53.6 | +4.7% | Steady demand from the precision tool sector |
Beyond geopolitical factors, the energy costs required to produce Tungsten Carbide and the price of binders are also significant. Tungsten Carbide is typically produced by reducing tungsten powder with carbon at extreme temperatures, followed by liquid-phase sintering with a metal matrix such as Cobalt (Co) or Nickel (Ni). Cobalt, as a key material for the secondary battery industry, experiences periodic price volatility driven by the Electric Vehicle (EV) market, which directly pushes up the final manufacturing cost of carbide seal rings.
When evaluating any replacement material, the comprehensive physical properties of Tungsten Carbide must serve as the benchmark. The working principle of a mechanical seal relies on an extremely thin liquid film formed between two sliding faces, typically with a thickness between 0.1-1.0 μm. Therefore, seal face materials must excel in several dimensions:
Wear resistance is the primary indicator of seal service life. Material hardness is generally negatively correlated with wear rate. Tungsten Carbide typically possesses a Vickers hardness between 1050-1500 HV, allowing it to effectively resist micro-cutting and erosion in media containing hard solid particles, such as mining slurries or crude oil residues.
This is the most significant advantage of Tungsten Carbide over most industrial ceramics (such as Silicon Carbide or Alumina). Due to its metal binder, Tungsten Carbide has a fracture toughness Kic reaching 8.0-15.0 MPa·m^1/2 or even higher. This prevents chipping or catastrophic failure in harsh conditions involving severe system vibration, installation misalignment, or sudden pressure surges.

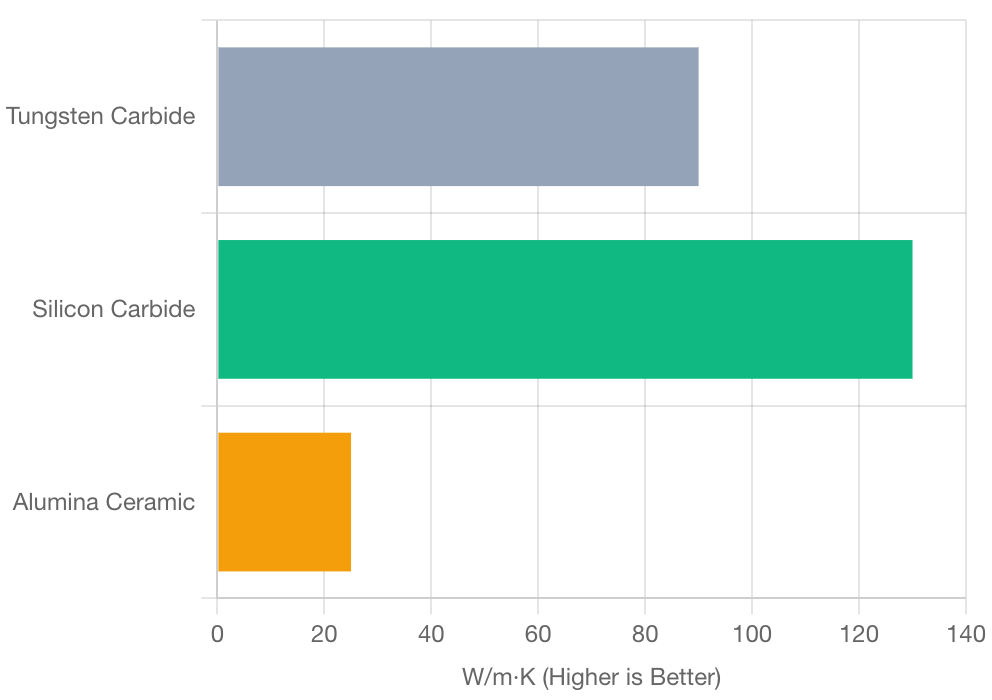

Friction generates heat between seal faces. If a material has low thermal conductivity, heat accumulation can lead to flashing of the medium within the seal gap, destroying the liquid film and causing dry-running failure. Frequent starts and stops also require the material to have excellent thermal shock resistance. Thermal shock resistance is often evaluated using parameters R1 and R2, where larger values represent better survivability in rapid temperature changes.
Formula for R1 (Thermal Shock Parameter):
R1 = / (E * alpha)
Where S is the material strength, v is Poisson's ratio, E is Young's modulus, and alpha is the coefficient of linear expansion.
Among known materials, Silicon Carbide (SiC) is the most mature and cost-effective alternative to Tungsten Carbide. It not only exceeds Tungsten Carbide in physical hardness but also demonstrates superior performance in thermal conductivity and corrosion resistance.
Based on the manufacturing process, Silicon Carbide is primarily categorized into Reaction Bonded (RBSiC) and Sintered/Pressureless Sintered (SSiC) varieties.
Reaction Bonded Silicon Carbide (RBSiC/SiSiC): Manufactured by infiltrating a preform of SiC and carbon with molten silicon. It contains approximately 10%-15% free silicon, which slightly reduces its stability in strong alkaline environments but provides self-lubricating properties that outperform pure ceramics in boundary lubrication conditions. RBSiC is relatively inexpensive to manufacture and is suitable for replacing mid-to-low-end WC rings in civilian and general industrial pumps.
Pressureless Sintered Silicon Carbide (SSiC): Produced from sub-micron powder sintered at high temperatures without free silicon. This material has extreme purity and can withstand almost all strongly corrosive media except Hydrofluoric Acid (HF). For chemical industry applications involving highly corrosive fluids, SSiC is a safer alternative to Tungsten Carbide.
Graphite-Loaded Silicon Carbide: An innovative composite ceramic that introduces micro-graphite phases into the SiC matrix, significantly improving dry-running capability and reducing the friction coefficient. When paired with standard SiC, this material's reliability in handling heavy slurries is comparable to expensive WC-on-WC pairings.
| Physical Property | Tungsten Carbide (6% Co) | Reaction Bonded SiC (RBSiC) | Sintered SiC (SSiC) |
| Density (g/cm3) | 14.7 - 15.0 | 3.05 - 3.10 | 3.10 - 3.15 |
| Hardness (Vickers HV) | 1200 - 1500 | 2000 - 2200 | 2500 - 2800 |
| Thermal Conductivity (W/m·K) | 80 - 110 | 110 - 130 | 120 - 140 |
| Expansion Coeff. (10^-6/°C) | 5.0 - 6.0 | 4.0 - 4.5 | 3.8 - 4.2 |
| Elastic Modulus (GPa) | 550 - 630 | 330 - 380 | 400 - 420 |
| Fracture Toughness (MPa·m^1/2) | 9.0 - 14.0 | 3.0 - 4.5 | 2.5 - 4.0 |
Analysis shows that the density of SiC is only about 20% of Tungsten Carbide. This means that for the same volume, the raw material mass consumption of SiC is drastically reduced, which also benefits the rotor dynamic stability of large rotating equipment.
Market analysis for 2025 indicates that due to large-scale industrial production, the procurement cost of SiC seal rings is typically 10%-20% lower than equivalent WC rings. Additionally, its higher thermal conductivity results in lower operating temperatures, significantly extending the replacement cycles caused by thermal failure and reducing Total Cost of Ownership (TCO). However, manufacturers must account for the brittleness of SiC, which requires more robust shock-absorbing structures in the seal design.
For highly budget-sensitive sectors and mild operating conditions, 99.5% high-purity Alumina ceramics are a non-negligible low-cost alternative to WC.
Alumina ceramics are known for their exceptional chemical inertness and high hardness, resisting erosion from most acids, bases, and organic solvents. However, their primary drawback is poor thermo-physical performance: their thermal conductivity is only about 20-30 W/m·K (less than one-third that of WC), and they have poor thermal shock stability.
Cost Competitiveness: In small-specification seals (around 25mm), the price of an Alumina seat may be only 1/3 to 1/4 that of a WC seat.
Applicable Conditions: Household water pumps, swimming pool circulation pumps, and light chemical processes with clean fluids. In these applications, solid particle content is low and temperature gradients are not extreme.
Risk Mitigation: Alumina is extremely fragile—much like household porcelain—and can shatter under minor mechanical overloads during installation. Therefore, precise assembly tools must be used to avoid stress concentrations.
When the cost of solid carbide rings becomes unbearable, a logical transformation is to treat the carbide as a "surface coating" rather than a "solid material." By applying a high-performance wear layer to a low-cost stainless steel or alloy steel substrate, manufacturers can achieve an optimal balance between performance and cost.
HVOF technology uses supersonic gas flows generated by high-pressure combustion to accelerate WC or Chromium Carbide (Cr3C2) powder particles to speeds of 500-1000 m/s. Upon impact with a stainless steel substrate, they form a dense, high-hardness protective layer.
Resource Conservation: HVOF coatings are typically only 0.1-0.3 mm thick, meaning they consume less than 5% of the tungsten required for a solid carbide ring, effectively hedging against rising tungsten prices.
Customized Performance: Manufacturers can adjust the coating formula based on the media—using WC/Co/Cr for enhanced chemical resistance in corrosive environments or Nickel-Chrome-Chromium Carbide for extreme high temperatures.
Thermal Matching: In traditional designs, differences in the thermal expansion coefficients between carbide rings and steel sleeves often lead to loosening or seal failure during thermal cycles. In coating technology, the substrate and sleeve are often the same material, eliminating mechanical stress caused by thermal mismatch.
DLC coatings are formed using Physical Vapor Deposition (PVD) or Plasma-Enhanced Chemical Vapor Deposition (PECVD) to create an amorphous carbon film on the seal face that possesses an ultra-low friction coefficient and extreme hardness.
| Property | Solid Tungsten Carbide (WC) | DLC Coating (a-C:H) | Tungsten-Doped DLC (WC-DLC) |
| Friction Coeff. (COF) | 0.08 - 0.15 | 0.05 - 0.10 | 0.03 - 0.08 |
| Hardness (GPa) | 12 - 15 | 15 - 30 | 25 - 45 |
| Layer Thickness (microns) | N/A | 2 - 5 | 1 - 3 |
DLC coatings provide an ultimate solution for "dry startup" and "boundary lubrication" challenges. Their low friction characteristics significantly reduce torque loads during startup, preventing early bonding failure of the seal faces. For seal manufacturers, although the processing cost of DLC is relatively high, its direct application on precision stainless steel components eliminates the need for expensive carbide blanks and complex subsequent grinding.
In specific, non-high-pressure abrasive scenarios, expensive Tungsten Carbide can be replaced by more economical metal alloys or reinforced polymers.
Ni-Resist: This austenitic cast iron with added nickel performs well in fresh water and general chemicals. Its cost is much lower than any carbide, and it is a staple in low-end circulation water pump seals.
Stellite (Cobalt-Chrome-Tungsten Alloy): Applied via welding or precision casting, Stellite is less wear-resistant than WC but offers advantages in cavitation resistance and high-temperature oxidation. It remains a robust choice for boiler feed pump seals.
In mining and dredging applications, WC rings often suffer from brittle fracture due to impacts from large particles. High-chromium cast iron (such as HHCCI) contains large amounts of M7C3 carbides, with hardness reaching over HRC 60. While its micro-hardness is lower than WC, its overall toughness is superior and its cost is a fraction of the price.
A reasonable pairing scheme can drastically reduce dependency on Tungsten Carbide.
Carbon graphite is naturally self-lubricating and exhibits extremely low wear under stable fluid film support. Replacing an expensive WC rotating ring with a Carbon Graphite ring paired with a SiC stationary seat often yields lower energy consumption and longer service life than a hard-on-hard (WC vs. WC) pairing.
| Pairing Type | Friction Coeff. (COF) | Typical Application | Cost Level |
| Carbon vs. WC | 0.05 - 0.08 | Clean water, fuels, light chemicals | Medium |
| Carbon vs. SiC | 0.03 - 0.07 | Chemical processing, high-speed seals | Low-Medium |
| WC vs. WC | 0.08 - 0.15 | High pressure, heavy slurry, vibration | Extremely High |
| SiC vs. SiC | 0.03 - 0.07 | Abrasive slurries, high-temp oils | Medium-High |
Adopting "Carbon vs. SiC" not only provides the lowest friction resistance but its supply chain is also least affected by tungsten shortages. Manufacturers should guide customers toward optimizing selections to promote these technically and economically superior solutions.
Material cost is just the tip of the iceberg; the ease of processing seal faces determines production efficiency.
Silicon Carbide's extreme hardness (second only to diamond) makes grinding and polishing exceptionally difficult.
Equipment Investment: High-efficiency processing of SiC typically requires automated, high-rigidity double-sided lapping machines, with single-unit investments often exceeding 100,000 USD.
Abrasive Consumption: Polishing SiC requires synthetic diamond (Adamas) slurries, which are consumed far faster than when processing WC, partially offsetting the lower raw material cost.
Yield Rate Control: Due to high brittleness, any contamination or uneven pressure during planar polishing can lead to edge chipping, resulting in a scrapped part.
Therefore, as manufacturers transition to SiC or other ceramic alternatives, they must simultaneously upgrade their precision machining processes to realize the cost-reduction potential of the raw materials through improved yields and automation.
For end-users, simple procurement cost reductions are often unappealing. The real driver for accepting new materials is the optimization of life cycle costs.
A mine had long used expensive Tungsten Carbide seal rings. In early 2025, the price per seal set increased by 30% due to tungsten price fluctuations.
Replacement Solution: The manufacturer suggested Sintered Silicon Carbide (SSiC) paired with Graphite-Loaded SiC.
Results: Initial procurement costs dropped by 15%. Due to SiC's superior heat dissipation, the seal face operating temperature dropped by 15°C, enhancing liquid film stability.
Benefits: The seal failure cycle extended from an average of 8 months to 24 months. Unplanned downtime was reduced by 60%, and the user's total operational costs fell by over 40%.
Such cases prove that material replacement should not be seen as a forced "consumption downgrade," but as a win-win synergy between technical iteration and supply chain optimization.
Faced with the "new normal" of high Tungsten Carbide costs, mechanical seal manufacturers should adopt a proactive, multi-dimensional response strategy:
Civilian and Low-Pressure General Pumps: Accelerate the promotion of 99.5% Alumina ceramics, utilizing economies of scale to further drive down costs.
Mid-range Industrial and Chemical Pumps: Establish Reaction Bonded Silicon Carbide (RBSiC) as the standard configuration, replacing traditional metal-bonded WC.
Extreme Corrosion and High-Temperature Applications: Lock in Sintered Silicon Carbide (SSiC) as the technical benchmark, leveraging its superior chemical stability.
Layout Surface Engineering: Invest in HVOF spraying and DLC coating lines. These technologies precisely apply expensive resources "to the edge," providing a long-term solution to raw material bottlenecks.
Optimize Processing: Introduce high-efficiency diamond grinding equipment and automated inspection systems to address the pain points of processing difficult, brittle ceramic materials.
Promote "Carbon vs. Hard" Pairings: Use tribological experimental data to prove the superiority of Carbon Graphite paired with ceramic materials in reducing power consumption and extending service life.
Establish Smart Monitoring Systems: Integrate sensors into new material seals to monitor wear and temperature in real-time, reducing the risk of unexpected failure associated with material property changes.
In summary, while the rise in Tungsten Carbide costs brings temporary pain, it also opens a new window for the integration of material science and manufacturing technology. By systematically applying SiC, Alumina, advanced coatings, and optimized friction pairs, manufacturers can not only hedge against raw material volatility but also achieve significant improvements in reliability and economic efficiency, gaining a competitive edge in the rapidly evolving global industrial market.
